HDLBits笔记7

Circuits.Combinational Logic.Karnaugh Map to Circuit

Karnaugh Map to Circuit

3-variable

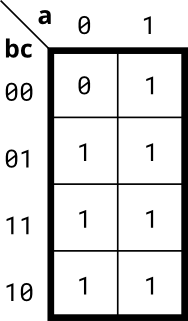

实现如下卡诺图,用sop和pos两种方式

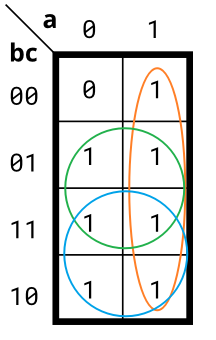

化简:

1
2
3
4
5
6
7
8
module top_module(
    input a,
    input b,
    input c,
    output out  );
    // sop和pos相同
    assign out = a | b | c;
endmodule

4-variable

实现如下卡诺图,用sop和pos两种方式

化简:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
module top_module(
    input a,
    input b,
    input c,
    input d,
    output out  );
    assign out = (~b & ~c) | (~a & ~d) | (b & c & d) | (a & c & d);
    // pos不常用,而且不好用
    // assign out = (~a | ~b | c) & (~b | c | ~d) & (~a | ~c | d) & (a | b | ~c | ~d);
endmodule

4-variable

实现如下卡诺图

化简:

1
2
3
4
5
6
7
8
module top_module(
    input a,
    input b,
    input c,
    input d,
    output out  );
    assign out = a | (~b & c);
endmodule

4-variable

实现如下卡诺图

不难看出,输入有奇数个1时,输出为1,所以是异或

1
2
3
4
5
6
7
8
module top_module(
    input a,
    input b,
    input c,
    input d,
    output out  );
	assign out = a ^ b ^ c ^ d;
endmodule

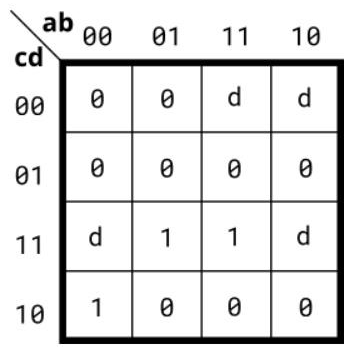

minimum SOP and POS

一个4输入电路,其输入为a,b,c,d,当输入为2、7、15时,输出1,当输入为0、1、4、5、6、9、10、13、14时,输出0,其他情况不考虑,当a,b,c,d为0001时,输入为1。

根据题意,画出卡诺图如下:

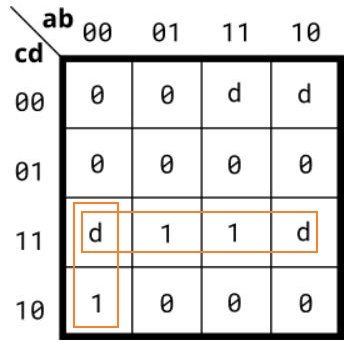

化简:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
module top_module (
    input a,
    input b,
    input c,
    input d,
    output out_sop,
    output out_pos
);
    assign out_sop = (c & d) | (c & ~a & ~b);
    // pos偷懒
    assign out_pos = out_sop;
endmodule

Karnaugh map

实现如下卡诺图

化简:

1
2
3
4
5
module top_module (
    input [4:1] x,
    output f );
    assign f = (x[2] & x[4]) | (x[3] & x[4]) | (~x[1] & x[3]);
endmodule

Karnaugh map

实现如下卡诺图

化简:

1
2
3
4
5
module top_module (
    input [4:1] x,
    output f);
    assign f = (~x[2] & ~x[3] & ~x[4]) | (x[2] & x[3] & x[4]) | (~x[1] & x[3]) | (x[1] & ~x[2] & x[3] & ~x[4]);
endmodule

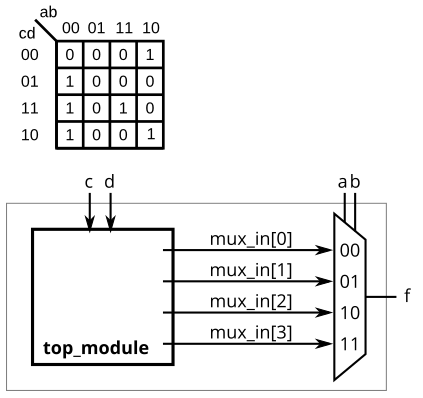

K-map implemented with a multiplexer

实现如下电路中的top_module

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
module top_module (
    input c,
    input d,
    output [3:0] mux_in
);
    assign mux_in[0] = c | d;
    assign mux_in[1] = 1'b0;
    assign mux_in[2] = ~d;
    assign mux_in[3] = c & d;
endmodule
